在上篇『ActiveMQ MQTT Server 架設』中我們已架設好MQTT Server，此篇我們將在Android上建立MQTT Client與MQTT Server做溝通.
此篇使用org.eclipse.paho來架設MQTT Client
Step 1: 引用org.eclipse.paho
在build.gradle中引用org.eclipse.paho
build.gradle1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| android {
...
}
repositories {
maven {
url "https://repo.eclipse.org/content/repositories/paho-snapshots/"
}
}
dependencies {
...
implementation 'org.eclipse.paho:org.eclipse.paho.client.mqttv3:1.1.0'
implementation 'org.eclipse.paho:org.eclipse.paho.android.service:1.1.1'
}
|
Step 2: 建立MqttService
在AndroidManifest.xml中宣告權限及建立MqttService
AndroidManifest.xml1
2
3
4
5
6
7
8
| <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.WAKE_LOCK"/>
<application>
<service android:name="org.eclipse.paho.android.service.MqttService"/>
</application>
|
Step 3: Implement MqttCallbackExtended
MainActivity.kt1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| private class MqttCallback : MqttCallbackExtended {
override fun connectComplete(reconnect: Boolean, serverURI: String?) {
Log.i(TAG, "connect Complete" + Thread.currentThread().id)
}
override fun messageArrived(topic: String?, message: MqttMessage?) {
Log.i(TAG, "topic: " + topic + " message: "+ String(message!!.payload, Charset.forName("utf-8")))
}
override fun connectionLost(cause: Throwable?) {
Log.i(TAG, "connection Lost ")
}
override fun deliveryComplete(token: IMqttDeliveryToken?) {
Log.i(TAG, "delivery Complete ")
}
}
|
在這四個函式中，不可進行UI的操作。可使用Handler後再做UI的處理。
Step 4: 初始化MQTT Client
MainActivity.kt1
2
3
4
5
6
7
8
9
10
|
private var mMqttClient: MqttAsyncClient? = null
private val host = "tcp://192.168.0.98:1883"
private val mClientID = "xx:xx:xx:xx:xx:xx"
...
if (null == mMqttClient) {
mMqttClient = MQTTUtils.initClient(host, mClientID, MqttCallback())
}
|
我們使用一個公用object MQTTUtils 來處理初始化。
MQTTUtils.kt1
2
3
4
5
6
7
8
9
10
| object MQTTUtils {
fun initClient(serverURI: String, clientId: String, callback: MqttCallback) :MqttAsyncClient? {
var client: MqttAsyncClient? = null
var persistence = MemoryPersistence()
client = MqttAsyncClient (serverURI, clientId, persistence)
client.setCallback(callback)
return client
}
}
|
serverURI: MQTT Server網址
clientId： 唯一識別碼，告知Broker知道是哪個Client
callback: 回調函式

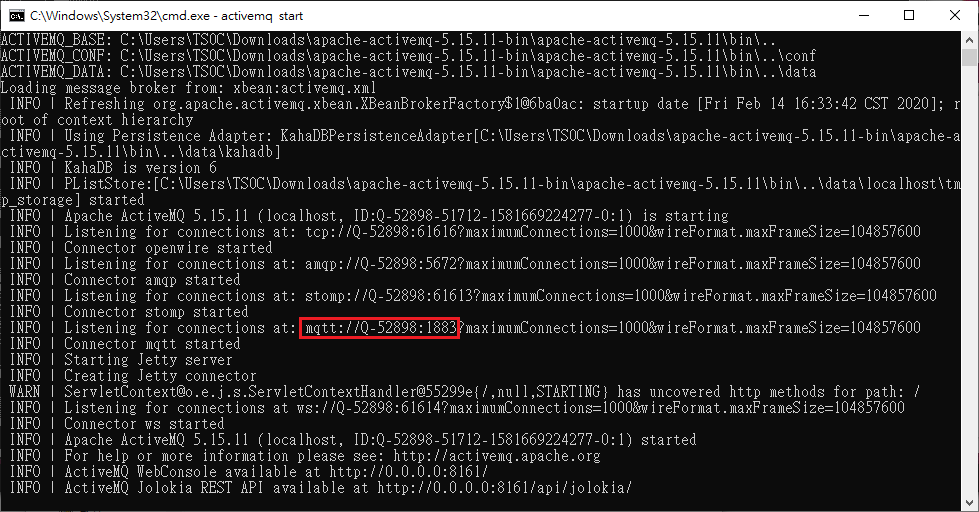

在上篇『ActiveMQ MQTT Server 架設』中，啟動Server時會得到Server的資訊，
其中會有MQTT的資訊。
在此port為1883
在程式中MQTT Server的網址設定為
tcp://xxx.xxx.xxx.xxx:1883
Step 5: 設定連接參數
在MQTTUtils中設置連接參數
MQTTUtils.kt1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| object MQTTUtils {
fun initMqttConnectionOptions(): MqttConnectOptions {
var mOptions = MqttConnectOptions()
mOptions.isAutomaticReconnect = false
mOptions.isCleanSession = true
mOptions.connectionTimeout = 10
mOptions.userName = "admin"
mOptions.password = "admin".toCharArray()
mOptions.keepAliveInterval = 10
mOptions.maxInflight = 10
mOptions.mqttVersion = MqttConnectOptions.MQTT_VERSION_3_1_1
return mOptions
}
}
|
參數說明
isAutomaticReconnect: 連接中斷時，是否會自動連接
isCleanSession： 若斷開連線時是否清除連接資訊
connectionTimeout: 連線逾時時間，以秒為單位
userName：帳號
password: 密碼
keepAliveInterval: Heartbeat，每隔幾秒會再度確認是否連線
maxInflight: 允許同時發送幾條訊息
mqttVersion: MQTT 版本
Step 6: 與MQTT Server連線
MainActivity.kt1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
private val mTopicID = "topic1"
var options = MQTTUtils.initMqttConnectionOptions()
mMqttClient!!.connect(options, null, object : IMqttActionListener {
override fun onSuccess(asyncActionToken: IMqttToken) {
mMqttClient!!.subscribe(mTopicID, 1)
}
override fun onFailure(asyncActionToken: IMqttToken, exception: Throwable) {
}
})
|
連線成功後，傳送溝通的Topic: mTopicID
執行結果
連接上後，透過ActiveMQ的管理界面，可看到Topics有剛剛所設定的mTopicID: topic1。
透過此Topic 可與MQTT Client做溝通。
Source Code
MainActivity.kt1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
| class MainActivity : AppCompatActivity(), View.OnClickListener {
private val host = "tcp://xxx.xxx.xxx.xxx:1883"
private val mClientID = "xx:xx:xx:xx:xx:xx"
private val mTopicID = "topic1"
private var mMqttClient: MqttAsyncClient? = null
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
var btConnect = findViewById<Button>(R.id.bt_connect)
btConnect.setOnClickListener(this)
}
override fun onDestroy() {
super.onDestroy()
if (null != mMqttClient) {
mMqttClient!!.disconnect()
}
}
private fun connect() {
Thread(Runnable {
try {
if (null == mMqttClient) {
mMqttClient = MQTTUtils.initClient(host, mClientID, MqttCallback())
}
var options = MQTTUtils.initMqttConnectionOptions()
mMqttClient!!.connect(options, null, object : IMqttActionListener {
override fun onSuccess(asyncActionToken: IMqttToken) {
mMqttClient!!.subscribe(mTopicID, 1)
}
override fun onFailure(asyncActionToken: IMqttToken, exception: Throwable) {
}
})
} catch (e: Exception) {
e.printStackTrace()
}
}).start()
}
private class MqttCallback : MqttCallbackExtended{
val TAG = "MqttCallback"
override fun connectComplete(reconnect: Boolean, serverURI: String?) {
Log.i(TAG, "connect Complete" + Thread.currentThread().id)
}
override fun messageArrived(topic: String?, message: MqttMessage?) {
Log.i(TAG, "topic: " + topic + " message: "+ String(message!!.payload, Charset.forName("utf-8")))
}
override fun connectionLost(cause: Throwable?) {
Log.i(TAG, "connection Lost ")
}
override fun deliveryComplete(token: IMqttDeliveryToken?) {
Log.i(TAG, "delivery Complete ")
}
}
override fun onClick(v: View?) {
when(v!!.id) {
R.id.bt_connect -> connect()
}
}
}
|
MQTTUtils.kt1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| object MQTTUtils {
fun initMqttConnectionOptions(): MqttConnectOptions {
var mOptions = MqttConnectOptions()
mOptions.isAutomaticReconnect = false
mOptions.isCleanSession = true
mOptions.connectionTimeout = 10
mOptions.userName = "admin"
mOptions.password = "admin".toCharArray()
mOptions.keepAliveInterval = 10
mOptions.maxInflight = 10
mOptions.mqttVersion = MqttConnectOptions.MQTT_VERSION_3_1_1
return mOptions
}
fun initClient(serverURI: String, clientId: String, callback: MqttCallback) :MqttAsyncClient? {
var client: MqttAsyncClient? = null
var persistence = MemoryPersistence()
client = MqttAsyncClient (serverURI, clientId, persistence)
client.setCallback(callback)
return client
}
}
|
